Lesson 5: Tables

The simpletable element

Dita simple tables (<simpletable>) use the following elements to represent and organize tabular data:

Element	Description	Number
<sthead>	A header row	There can be at most one header row.
<strow>	A body row	There must be at least one body row, but the table can contain many rows.
<stentry>	A simple table entry	Each row can contain one or more <stentry> elements, but each row (including the header row) should include the same number of <stentry> elements.

The <stentry> element contains text data or other common block and inline elements.

Here is an example of a table with one heading row, two body rows, and two columns.

<simpletable>

   <sthead>

      <stentry>heading for column 1</stentry>

      <stentry>heading for column 2</stentry>

   </sthead>

   <strow>

      <stentry>row 1, column 1</stentry>

      <stentry>row 1, column 2</stentry>

   </strow>

   <strow>

      <stentry>row 2, column 1</stentry>

      <stentry>row 2, column 2</stentry>

   </strow>

</simpletable>

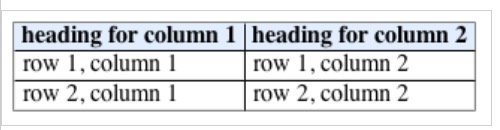

This table looks like this visually:

The table element

DITA tables (<table>) use the following elements to represent and organize tabular data:

Element	Description	Number
<title>	Contains the title for the table.	Zero or one.
<tgroup>	Contains the columns specifications, header rows and body rows.	Every table must contain at least one <tgroup> element.
<colspec>	Defines column widths and identifying information.	There should be one <colspec> element per column in your table.
<thead>	Contains the table header rows.	A <tgroup> can contain at most one <thead> element.
<tbody>	Contains the table body rows.	A <tgroup> must contain one and only one <tbody> element.
<row>	Contains a single row in a table.	A <thead> or <tbody> element can contain any number of <row> elements.
<entry>	Contains data for a table cell.	Can contain text data or other common block and inline elements. A <row> element can contain one or more <entry> elements.

A minimal DITA table

This is an example of a minimal DITA table structure (one heading row, one body row, and three columns). Note that in this case, the <tgroup> specifies only the cols attribute, which is required:

 <table>

      <tgroup cols="3">

        <thead>

          <row>

            <entry>column 1, heading row</entry>

            <entry>column 2, heading row</entry>

            <entry>column 3, heading row</entry>

          </row>

        </thead>

        <tbody>

          <row>

            <entry>column 1, body row</entry>

            <entry>column 2, body row</entry>

            <entry>column 3, body row</entry>

          </row>

        </tbody>

      </tgroup>

    </table>

The result looks like this:

A complex DITA table

A table that is a little bit complex looks like this:

<table>

        <title>My first table</title>

        <tgroup cols="2">

          <colspec colname="c1" colnum="1" colwidth="1*"/>

          <colspec colname="c2" colnum="2" colwidth="4*"/>

          <thead>

            <row>

              <entry>heading row, column 1</entry>

              <entry>heading row, column 2</entry>

            </row>

          </thead>

          <tbody>

            <row>

              <entry>row 1, column 1</entry>

              <entry>row 1, column 2</entry>

            </row>

            <row>

              <entry namest="c1" nameend="c2">This cell spans two columns.</entry>

            </row>

            <row>

              <entry morerows="1">This cell spans two rows.</entry>

              <entry>row 3, column 2</entry>

            </row>

            <row>

              <entry>row 4, column 2</entry>

            </row>

          </tbody>

        </tgroup>

      </table>

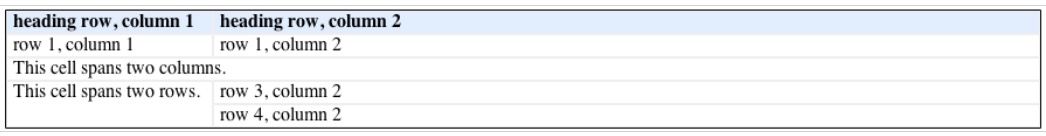

It looks like this visually:

Notes on the table:

• The <colspec> element uses attributes to specify the column names (colname), numbers (colnum), and widths (colwidth). In this example, the colwidths are 1* and 4*. The asterisk indicates that the settings are proportional, so the first column gets 20% of the available width and the second column gets 80%.
• Each row has a <row> element with <entry> elements for each cell. Notice that row 2 has only a single <entry>. That’s because the entry spans across both columns, which is specified by the name-start (namest) and name-end (nameend) attributes.
• In row 3, the first entry spans rows 3 and 4, so there you have a morerows attribute.

Best practices for tables

• Always wrap <entry> content in the table in <p> tags.
• Nesting tables, even though it's allowed, is a bad idea.
• Consider including more rows instead of more columns.
• In many word processing tools, people use tables to visually format content such as indented lists. In DITA, this is not done and can lead to unexpected results.
• Consider localization text expansion in tables. Where possible,design the content for up to 40% text expansion.
• The DITA standard allows graphics in table cells. However, in most cases it’s best to limit these graphics to small icons in table cells.
• Consider the possible outputs when you create tables.
• In some cases you might want to consider using other elements, such as definition lists, which can be rendered either as a table or a glossary-style list, depending on the target output.
